Product Summary
The LCMXO640C-3TN100C is a complex programmable logic device. It is optimized to meet the requirements of applications traditionally addressed by CPLDs and low capacity FPGAs.
Parametrics
Absolute maximum ratings: (1)Supply Voltage VCC:-0.5V to 3.75V; (2)Supply Voltage VCCAUX:-0.5V to 3.75V; (3)Output Supply Voltage VCCIO:-0.5V to 3.75V; (4)I/O Tristate Voltage Applied:-0.5V to 3.75V; (5)Dedicated Input Voltage Applied:-0.5V to 4.25V; (6)Storage Temperature (ambient):-65℃ to 150℃; (7)Junction Temp.:+125℃.
Features
Features: (1)Instant-on-powers up in microseconds; (2)Single chip, no external configuration memory required; (3)Excellent design security, no bit stream to intercept; (4)Reconfigure SRAM based logic in milliseconds; (5)SRAM and non-volatile memory programmable through JTAG port; (6)Supports background programming of non-volatile memory; (7)256 to 2280 LUT4s ; (8)73 to 271 I/Os with extensive package options; (9)Density migration supported; (10)Lead free/RoHS compliant packaging.

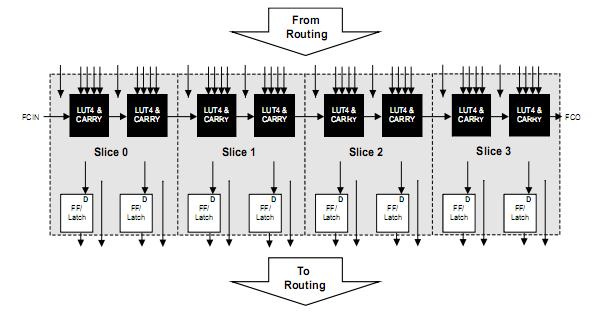

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LCMXO640C-3TN100C |
Lattice |
CPLD - Complex Programmable Logic Devices 640 LUTS 74 I/O |
Data Sheet |
|
|
||||||||||||
