Product Summary
The SiI160CTU transmitter uses PanelLink Digital technology to support displays ranging from VGA to UXGA resolutions (25 - 165Mpps) in a single link interface.
Parametrics
Absolute maximum ratings: (1)Supply Voltage 3.3V: -0.3 to 4.0 V; (2)Input Voltage: -0.3 to VCC+ 0.3 V; (3)Output Voltage: -0.3 to VCC+ 0.3 V; (4)Junction Temperature (with power applied): 125 ℃; (5)Storage Temperature: -65 to 150 ℃.
Features
Features: (1)Scaleable Bandwidth: 25 - 165MHz (VGA to UXGA); (2)Flexible Graphics Controller Interface: 12-bit or 24-bit mode 1 pixel/clock inputs; (3)Flexible Input Clocking: Single clock single edge (24-bit), Single clock dual edge (12-/24-bit), Dual clock single edge (12-bit); (4)I2C Slave Programming Interface up to 100kHz; (5)Low Voltage Interface: 3.3V with option for 1.0 to 3.0V Low Voltage Signal Mode.

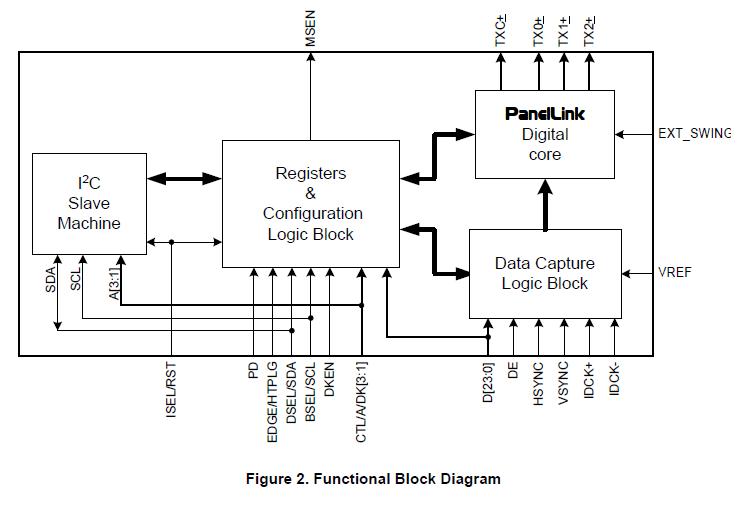

Diagrams
 |
