Product Summary
The SiI164CTG64 is a transmitter. It uses PanelLink Digital technology to support displays ranging from VGA to UXGA resolutions (25 - 165Mpps) in a single link interface. It has a highly flexible interface with either a 12-bit mode or 24-bit mode 1-pixel/clock input for true color (16.7 million) support. In 24-bit mode, it supports single or dual edge clocking. In 12-bit mode, it supports dual edge single clocking or single edge dual clocking. It can be programmed though an I2C interface. In addition it also supports Receiver and Hot Plug Detection.
Parametrics
Absolute maximum ratings: (1)VCC, Supply Voltage: 3.3V -0.3 4.0 V; (2)VI, Input Voltage: -0.3 VCC+ 0.3 V; (3)VO, Output Voltage: -0.3 VCC+ 0.3 V; (4)TJ, Junction Temperature (with power applied): 125 ℃; (5)TSTG, Storage Temperature: -65 150 ℃.
Features
Features: (1)Scaleable Bandwidth: 25 - 165MHz (VGA to UXGA); (2)Flexible Graphics Controller Interface: 12-bit or 24-bit mode 1 pixel/clock inputs; (3)Flexible Input Clocking: Single clock single edge (24-bit), Single clock dual edge (12-/24-bit), Dual clock single edge (12-bit); (4)I2C Slave Programming Interface up to 100kHz; (5)Low Voltage Interface: 3.3V with option for 1.0 to 3.0V Low Voltage Signal Mode; (6)Monitor Detection supported through hot plug and receiver detection; (7)De-skewing Option varies input clock to input data timing; (8)Low Power: 3.3V operation (120mA max.) and Power Down mode (1mA max.); (9)Cable Distance Support: over 5m with twisted pair and fiber-optics ready; (10)Compliant with DVI 1.0.

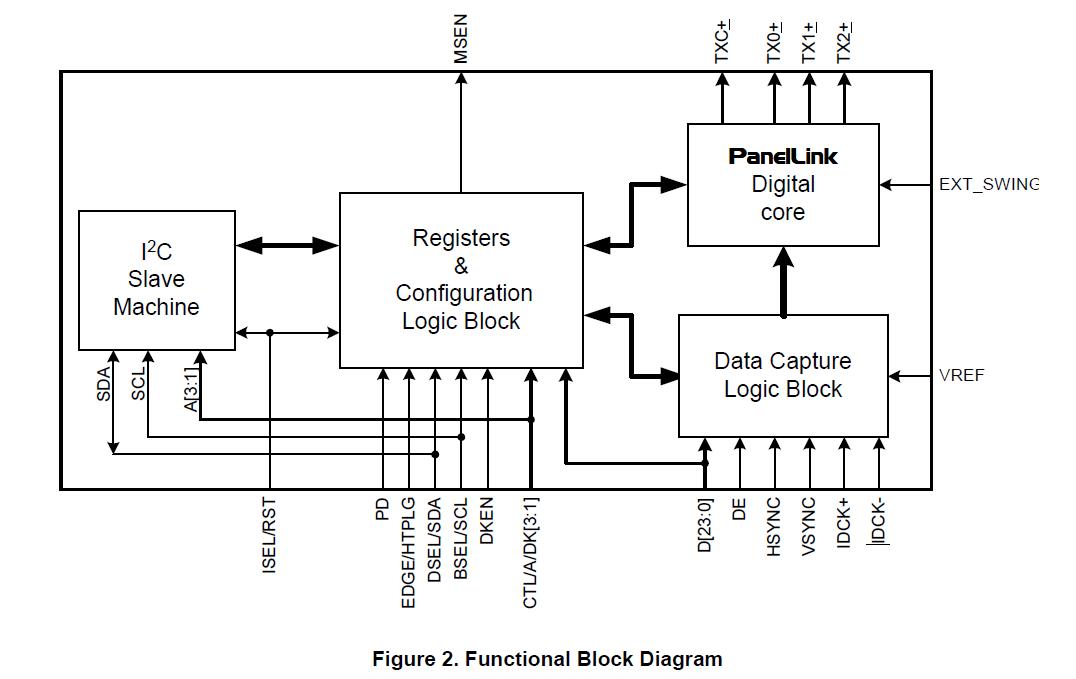

Diagrams
 |
