Product Summary
The M4A5-256/128-10YNC is a High Performance E2CMOS In-System Programmable Logic.
Parametrics
Absolute maximum ratings: (1)Storage Temperature:-65℃ to +150℃; (2)Ambient Temperature with Power Applied:-55℃ to +100℃; (3)Device Junction Temperature:+130℃; (4)Supply Voltage with Respect to Ground:-0.5 V to +7.0 V; (5)DC Input Voltage:-0.5 V to VCC + 0.5 V; (6)Static Discharge Voltage:2000 V; (7)Latchup Current (TA = -40℃ to +85℃):200 mA.
Features
Features: (1)High-performance, E CMOS 3.3-V & 5-V CPLD families; (2)Flexible architecture for rapid logic designs; (3)D/T registers and latches; (4)Synchronous or asynchronous mode; (5)Dedicated input registers; (6)Programmable polarity; (7)Reset/ preset swapping; (8)3.3-V & 5-V JEDEC-compliant operations; (9)JTAG (IEEE 1149.1) compliant for boundary scan testing; (10)3.3-V & 5-V JTAG in-system programming; (11)PCI compliant (-5/-55/-6/-65/-7/-10/-12 speed grades); (12)Safe for mixed supply voltage system designs; (13)Programmable pull-up or Bus-FriendlyTM inputs and I/Os; (14)Hot-socketing ; (15)Programmable security bit; (16)Individual output slew rate control.

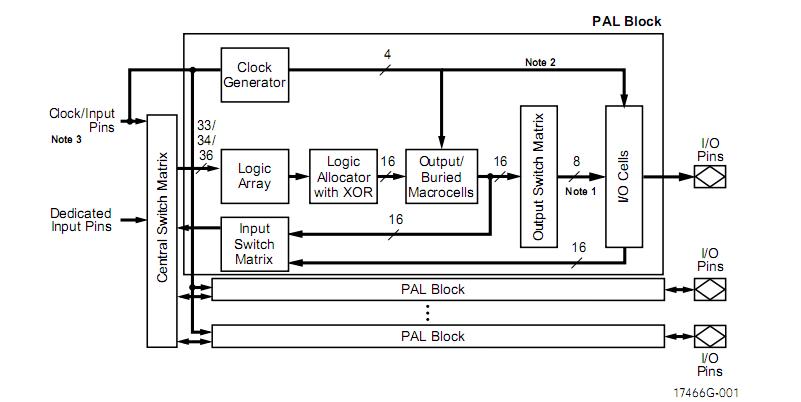

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M4A5-256/128-10YNC |
Lattice |
CPLD - Complex Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
|
|
||||||||||
